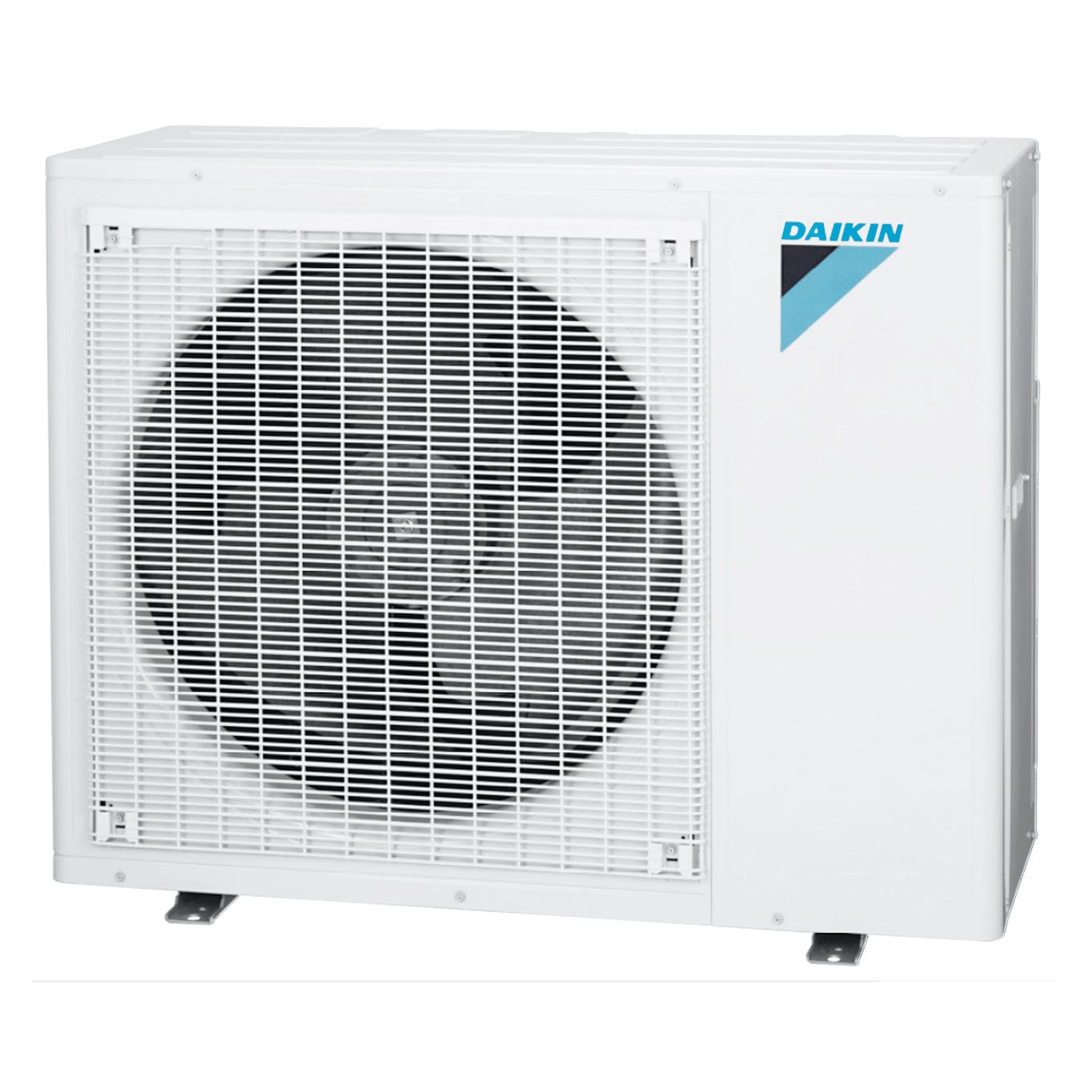

Daikin MXL Series 36,000 BTU Multi-Zone Heat Pump Outdoor Unit - 21.7 SEER High Efficiency for Home & Commercial HVAC Systems - Perfect for Whole House Cooling & Heating in All Seasons

Specifications

• Frequency: 60 Hz
• Voltage: 208-230 V
• Nomial Cooling Capacity: 36,000 Btu/h
• Nominal Heating Capacity: 36,000 Btu/h
• Max/Min Cooling Capacity: 8,500 - 40,500 Btu/h
• Max/Min Heating Capacity: 6,700 - 54,500 Btu/h
• Refrigerant Oil Type: FVC50K
• Refrigerant Type: R-410A
• Fan Type: Propeller
• Fan Motor Output: 84 W
• Sound Pressure Level (H) - Cooling: 55 dBA
• Power Supply: 208-230 V/ 60 Hz / 1 Phase
• Heat Insulation: Both Liquid and Gas Pipes
• Starting Current: 27.0 A
• Amount of Additional Charge of Refrigerant: 0.21 oz/ft
• Weight: 214 lb

• Depth: 18-1/8 in
• Width: 43-5/16 in
• Height: 34-1/4 in
• Packaged
• Depth: 22 in
• Width: 46-7/8 in
• Height: 39-15/16 in
• Rated Piping Length: 230 ft
• Rated Height Difference: 49-1/4 ft
• Pipe Connections - Liquid: 1/4 x 4 in
• Pipe Connections - Gas:
• 1/2 × 2 in
• 3/8 × 1 in
• 5/8 × 1 in
• Pipe Connections - Drain: 1 in

• EER Non-Ducted: 12.5 Btu/h·W
• EER Ducted: 11.0 Btu/h·W
• SEER Non-Ducted: 21.7
• SEER Ducted: 16.9
• HSPF Non-Ducted: 11.2
• HSPF Ducted: 9.1
• COP Non-Ducted: 4.26
• SCOP Ducted: 3.5
