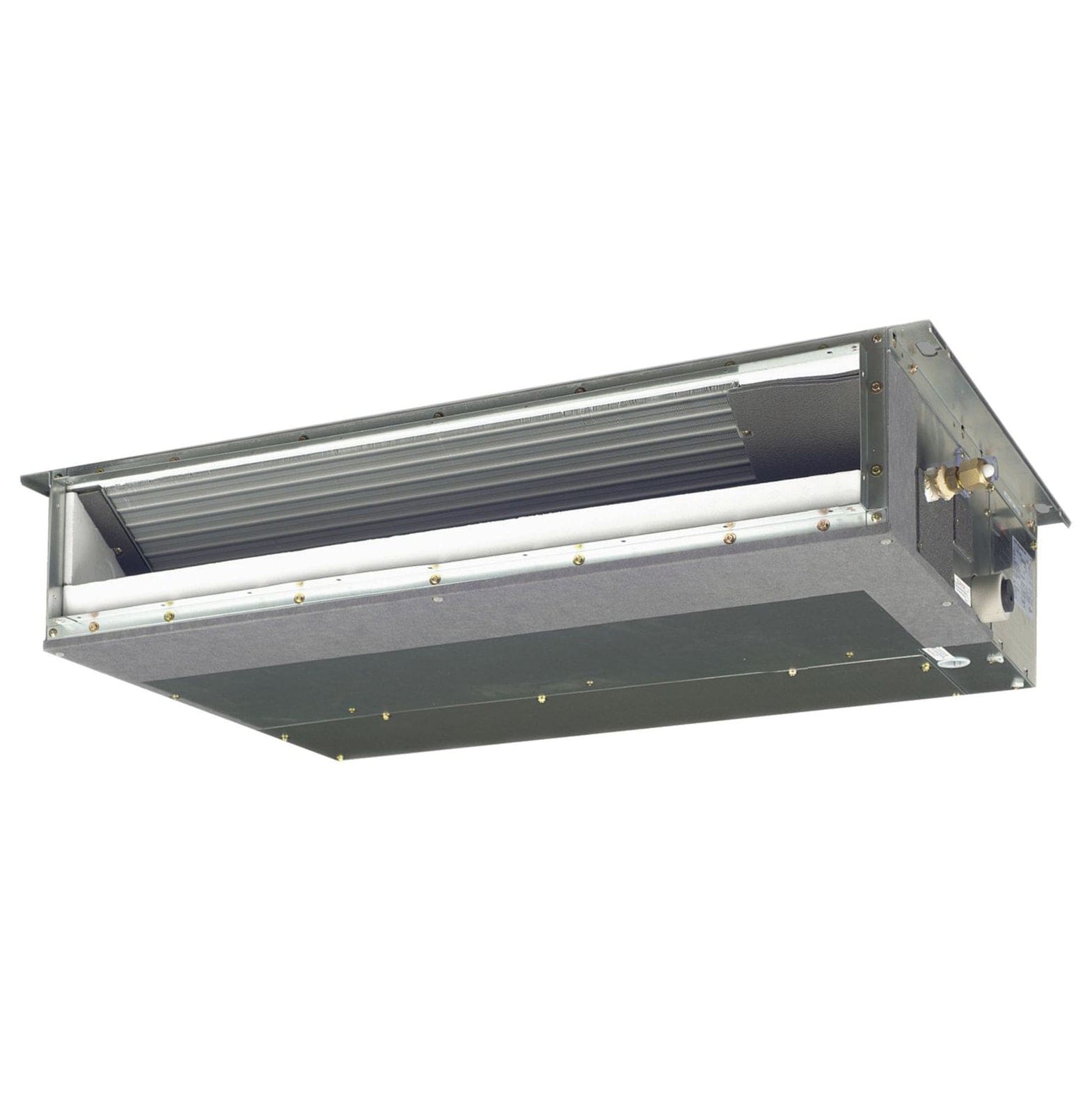

Daikin FDXS09LVJU 9,000 BTU Mini Split Slim Duct Concealed Ceiling Fan Coil Unit - Energy Efficient Cooling for Bedrooms, Offices & Small Spaces

Specifications

• Model Type: Concealed Ceiling Unit
• Frequency: 60 Hz
• Voltage: 208-230 V
• Current: 0.58 - 0.52/0.58 - 0.52 A
• Number of Speeds: 5
• Nominal Cooling Capacity: 9,000 Btu/h
• Cooling Capacity: 8,500 Btu/h
• Nominal Heating Capacity: 9,000 Btu/h
• Heating Capacity: 10,000 Btu/h
• Power Supply: 208-230 V/ 60 Hz / 1 Phase
• Moisture Removal: 2.5 gal/h
• Power Consumption (Rated): 72 - 72/72 - 72 W
• Power Factor (Rated): 59.7 - 60.2/59.7 - 60.2 %
• Fan Type: Sirocco fan
• Fan Motor Output: 62 W
• Fan Speed: 5 Steps, Quiet, Auto
• Temperature Control: Microcomputer Control
• Air Filter: Removable / Washable / Mildew Proof
• Heat Insulation: Both Liquid and Gas Pipes
• Sound Pressure Level (H/M/L) - Cooling: 35 / 33 / 31 dBA
• Sound Pressure Level (H/M/L) - Heating: 35 / 33 / 31 dBA
• Airflow Rate (H): 305/305 ft³/min
• Airflow Rate (M): 280/280 ft³/min
• Airflow Rate (L): 260/260 ft³/min
• Airflow Rate (SL): 235/235 ft³/min
• Rated Cooling Conditions
• Ambient (°F DB/WB): 95 / 75
• Indoor (°F DB/WB): 80 / 67
• Rated Heating Conditions
• Ambient (°F DB/WB): 47 / 43
• Indoor (°F DB/WB): 70 / 60
• Amount of Additional Charge of Refrigerant: 0.21 oz/ft
• Sound Power Level: 51 dBA
• External Static Pressure: 30 Pa
• Weight: 47 lb
• Gross Weight: 64 lb

Dimensions

• Depth: 24-7/16 in
• Width: 27-9/16 in
• Height: 7-7/8 in
• Pipe Connections - Liquid: 1/4 in
• Pipe Connections - Gas: 3/8 in
• Pipe Connections - Drain: 1-1/32 in
• Max. Interunit Height Difference: 49.2 ft
• Max. Interunit Piping Length: 65.6 ft
• Packaged Depth: 30-1/4 in
• Packaged Width: 36-5/16 in
• Packaged Height: 10-13/16 in
• Chargeless: 32.8 ft

Features

• Intelligent eye occupancy sensor
• Weekly timer for programmable comfort
• Low ambient heat operation down to 0° F
• Low ambient cooling kit available
• 12 year limited parts and compressor warranty with online registration

Benefits

• Quiet operation
