Daikin 9000 BTU 14.3 SEER2 Mini Split Ducted Heat Pump AC - Energy Efficient Concealed Duct System for Bedroom, Office & Small Spaces

Daikin FDMQ Ducted Concealed Single Zone Heat Pump Systems
DUCTED CONCEALED INDOOR UNITS
Up to 15.3 SEER2 / 8.2 HSPF2 / 10 EER2
INVERTER (VARIABLE-SPEED) COMPRESSOR

Today, the air is perfect. Perfect temperature. Perfect humidity. Perfectly clean and fresh, like just after a rainstorm. And the only thing more perfect than this outdoor scenario is that it’s all happening inside. Because that’s where we work. That’s where we play, where we sleep, where we truly live.

Comfort

We offer a wide range of products, and always provide you with the ideal solution, whether for an apartment, condo or a house. Our units are whisper quiet and, with their specially designed airflow pattern, they create your ideal indoor climate.

Daikin units are designed to include features that let you create your own unique ecosystem. From the wide angle louver design to the auto-swing and comfortable mode controller settings, effective heating and cooling is ensured throughout the space.

Smart inverter technology

Integrated with an inverter (variable speed) compressor, Daikin systems deliver the capacity required to maintain desired room conditions, typically reducing energy consumption by up to 30% or more (compared to traditional fixed speed ducted systems). This technology minimizes temperature fluctuations and provides continuous cooling and heating comfort.

Energy efficiency

Our products are designed to be highly efficient all year round, and their low energy consumption is reflected in low energy bills for you.

Concealed Comfort and Enhanced Flexibility

The FDMQ ducted concealed indoor unit expands on the current offering of single-zone ducted systems by providing external static pressure capabilities of up to .6. This allows for longer duct runs and easy implementation of high MERV filters (compared

to units with lower static pressure). The FDMQ unit can be converted from rear return-air configurations to a bottom return for installation flexibility. This completely concealed unit delivers heating and cooling comfort to a wide range of applications.

Features:

• Energy efficient – Up to 15.3 SEER2, 8.2 HSPF2, 10 EER2
• Available in 0.75 to 2 Tons
• Capable of providing external static pressures up to 0.6 in Hg on all models
• Integral lift mechanism with 29-9/16” of lift
• Drain pan inspection port makes it easy to observe drain pan conditions
• No optional adapter needed for DIII-connection, link your unit into the wider building management system
• 12-Year Parts Limited Warranty*
• Outside air integration possible
• Optional MERV 13 Filter box to help improve IAQ

Ideal Solution for:

• Renovations, remodeling and new construction
• Sunrooms, basements, garages, hot or cold rooms, attics where the walls tend to be lower, or wherever wall space is at a premium
• Ceiling void or attics which allow for a ducted solution with longer duct runs
• Homeowners’ requiring higher level of filtration
• Homeowners’ reluctance to use a visible wall or a floor mounted unit

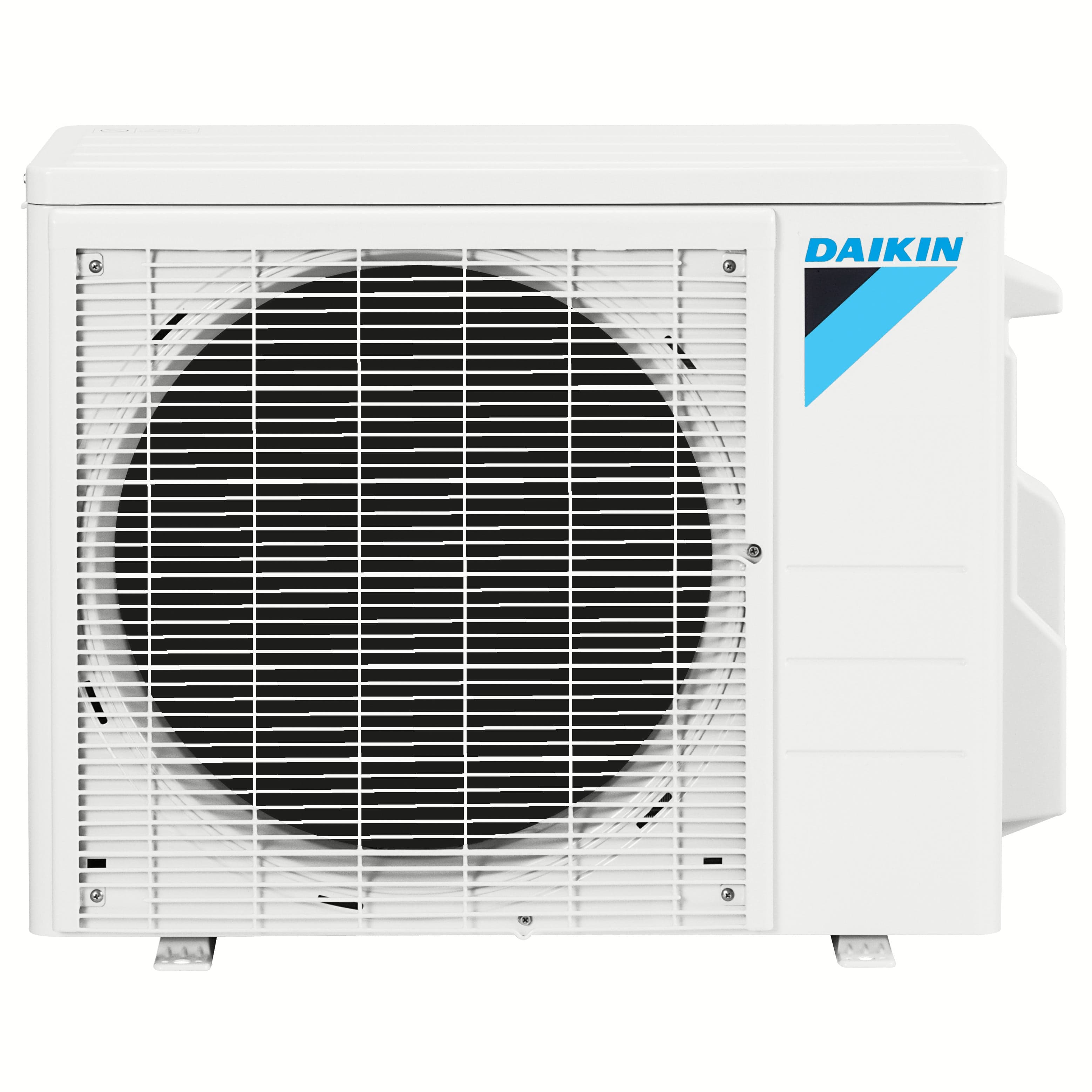

RX09WMVJU9 | Outdoor Unit

• Anti-Corrosion Treatment on Heat Exchanger - The special anti-corrosion coating on the outdoor unit heat exchanger provides resistance to salt damage and atmospheric corrosion.
• Quick Warming Function - Preheats the compressor to shorten the time required to discharge warm air.
• Automatic Defrosting - Sensor performs automatic defrosting of the outdoor heat exchanger if necessary, ensuring optimum heating performance.
• Outdoor Unit Quiet Operation - Outdoor unit sound levels can be reduced by 3dB for times when quieter operation is needed.

FDMQ09WVJU9 | Indoor Unit Features:

• Hot Start - (Heat Pump) When the heating operation starts or when the unit changes from cooling to heating, there is no cold draft released into the room.
• Program Dry Function - This gives priority to reducing the level of humidity in the room rather than room temperature.
• Auto-Restart - The unit memorizes the operation mode, airflow and temperature settings. Should there be a power failure when the unit is in operation, it will automatically return to the same operating conditions when the power is restored.

WHAT’S INCLUDED
Your Daikin mini-split inverter air conditioner heat pump system comes with:

• FDMQ09WVJU9 | Indoor unit
• RX09WMVJU9 | Outdoor unit

MANUFACTURER WARRANTY

• 12 Year Parts Warranty
