Specifications

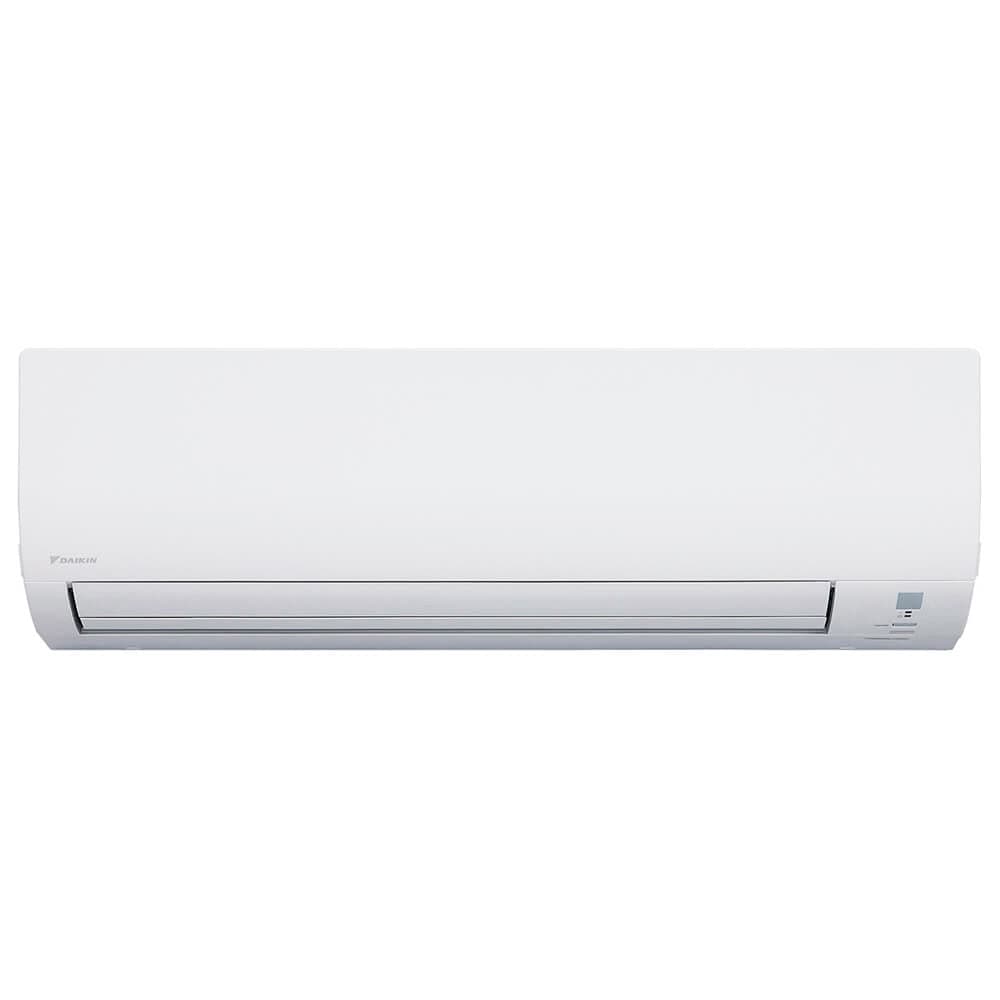

- Model Type: Wall Mounted Unit
- Nominal Cooling Capacity: 15,000 Btu/h
- Cooling Capacity: 18,400 Btu/h
- Nominal Heating Capacity: 18,000 Btu/h
- Heating Capacity: 24,600 Btu/h
- Sensible Capacity: 12,470 Btu/h
- Moisture Remova: l0.63 gal/h
- Frequency: 60 Hz
- Power Supply: 208-230 V/ 60 Hz / 1 Phase
- Voltage: 208-230 V
- Fan Type: Cross Flow Fan
- Fan Speed: 5 Steps, Quiet, Auto
- Fan Motor Output: 33 W
- Temperature Control: Microcomputer Control
- Heat Insulation: Both Liquid and Gas Pipes
- Operation Sound (H/M/L/SL) – Cooling: 45/41/36/33 dBA
- Operation Sound (H/M/L/SL) – Heating: 45/41/37/33 dBA
- Airflow Rate (H): 593/653 ft³/min
- Airflow Rate (M): 505/554 ft³/min
- Airflow Rate (L): 431/470 ft³/min
- Airflow Rate (SL): 367/399 ft³/min
- Air Filter: Removable / Washable
- Air Direction Control: Right, Left, Horizontal and Downward
- Rated Cooling Conditions:
- Ambient (°F DB/WB): 95 / 75
- Indoor (°F DB/WB): 80 / 67
- Rated Heating Conditions:
- Ambient (°F DB/WB): 47 / 43
- Indoor (°F DB/WB): 70 / 60
- Weight: 27 lb
- Gross Weight: 37 lb
Dimensions
- Depth: 10-3/8 in
- Width: 39 in
- Height: 11-5/8 in
- Pipe Connections - Liquid: 1/4 in
- Pipe Connections - Gas: 1/2 in
- Pipe Connections - Drain: 5/8 in
- Max. Interunit Height Difference: 65-5/8 ft
- Max. Interunit Piping Length: 98-1/2 ft
- Packaged Depth: 15-3/8 in
- Packaged Width: 42-1/2 in
- Packaged Height: 14-9/16 in
System Efficiency Metrics
- System Performance EER: 13.0 Btu/h/W
- System Performance SEER: 20.0
- System Performance HSPF: 12.5
- System Performance Heating COP: 4.0
Features
- Low ambient cooling capable
- Washable air filter
- Titanium Apatite Air-Purifying Filter
- Vertical auto-swing air flow
- Hot-start function to eliminate start-up drafts
- Powerful (turbo) and Econo mode settings
- Wireless remote with backlit LCD display
Benefits
- 12-year parts limited warranty with online registration for residential applications
- 5-year parts limited warranty with online registration for commercial applications
- High efficiency cooling and heating operation provides utility bill savings
- Low profile indoor unit with matte white finish
- May qualify for regional utility rebates and incentives
- Compatible with optional DKN Residential Cloud Wi-Fi Adaptor, Daikin Comfort Control Wi-Fi Adaptor or DKN Plus Interface
